A&D Medical TM-2441 Premium Ambulatory Blood Pressure Monitor (ABPM)

The A&D Medical TM-2441 Premium Ambulatory Blood Pressure Monitor is a next-generation 24-hour monitoring system for clinical hypertension assessment. Combining diagnostic precision with advanced environmental sensing, the TM-2441 not only measures blood pressure but also records activity, ambient temperature, and barometric pressure to help clinicians interpret physiological variations. Its dual-use capability allows the same device to function as both an Ambulatory BP Monitor (ABPM) and an Automated Office BP Monitor (AOBP), providing exceptional value and clinical versatility.

Key Features & Benefits

• Dual-use capability: Operates as a 24-hour Ambulatory BP Monitor or an Automated Office BP Monitor (AOBP) for in-office readings.
• Advanced multi-sensor design: Captures activity, temperature, and air pressure data alongside BP readings for comprehensive diagnostic context.
• Clinically validated accuracy: Meets ISO 81060-2:2013 and AAMI standards; recognized by Hypertension Canada’s Gold validation level.
• Patient-centered comfort: Compact (6.6 oz with batteries), quiet inflation, and soft, non-allergenic cuff available in five sizes (XS–XL).
• Improved compliance: Lightweight, quiet, and easy to wear — ideal for day and nighttime use.
• Trusted accuracy: Filters out noise and irregularities, detecting Irregular Heartbeat (IHB) and producing clean, reliable data.
• Flexible data integration: Results exportable to PDF or directly into patient EHRs using included analysis software.
• Insurance reimbursable: ABPM services often qualify for Medicare and private payer reimbursement.

Premium Diagnostic Features

• Activity Sensor: Integrated accelerometer tracks physical activity and motion for contextual analysis of BP fluctuations.
• Ambient Temperature Sensor: Monitors surrounding air temperature to correlate environmental influence on readings.
• Barometric Pressure Sensor: Measures atmospheric pressure to identify seasonal or weather-related BP trends.

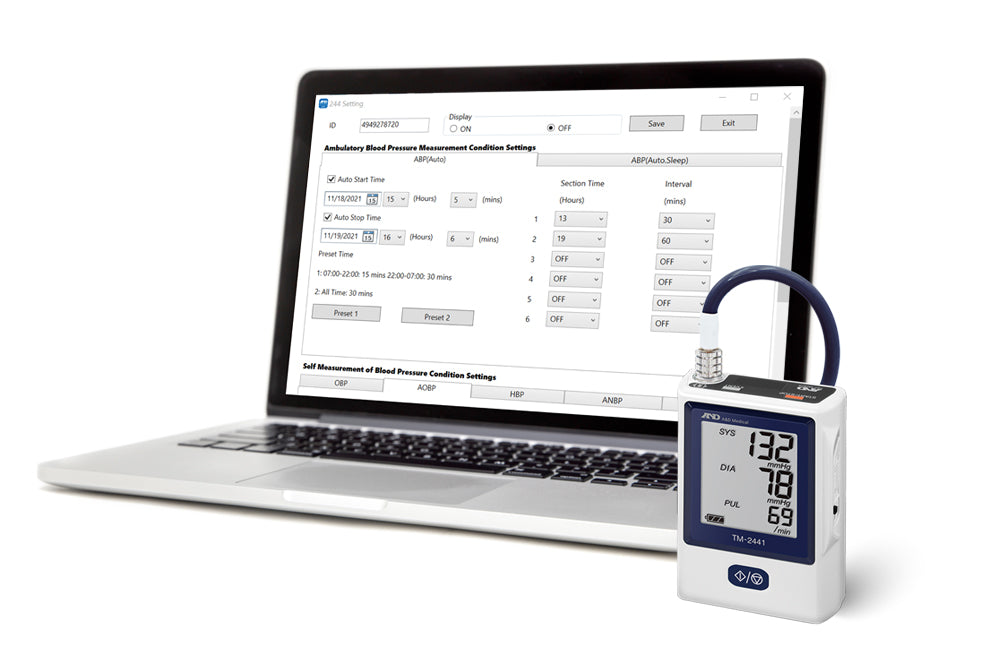

• Graphical & Circadian Analysis: Ambulatory Analysis software provides visual summaries, morning surge metrics, and trend reporting.

Office Mode (AOBP Function)

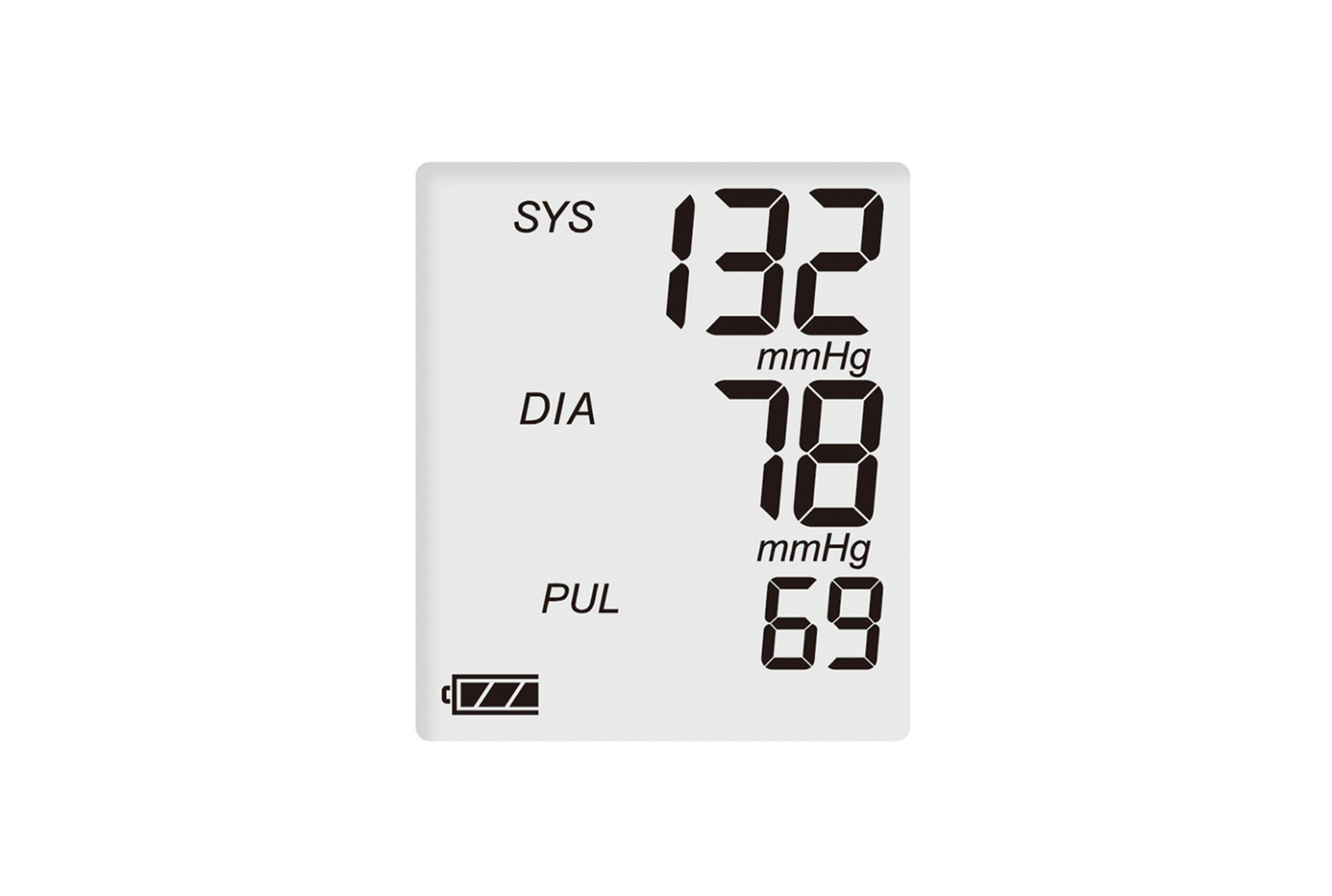

When not used for 24-hour ambulatory monitoring, the TM-2441 functions as an Automated Office BP Monitor (AOBP). This mode supports standardized, unattended measurements in a clinical setting, minimizing white-coat effects. The large backlit LED display ensures easy readability and can be turned off during ABPM use to prevent light disturbance during sleep monitoring.

Clinical Applications

• White coat and masked hypertension evaluation
• Nocturnal and morning surge assessment
• Resistant hypertension and hypotension management
• Blood pressure variability and circadian rhythm analysis
• Medication efficacy and dosage optimization

Technical Specifications

• Measurement Method: Oscillometric
• Pressure Detection: Semiconductor pressure sensor
• Display Range: 0–299 mmHg (299 mmHg or more hidden)
• Measurement Range: Systolic 60–280 mmHg; Diastolic 30–160 mmHg; Pulse 30–200 bpm
• Accuracy: Pressure ±3 mmHg; Pulse ±5%
• Minimum Display Division: 1 mmHg / 1 bpm
• Measurement Intervals: OFF, 5, 10, 15, 20, 30, 60, 120 minutes
• Memory Capacity: 600 readings
• Power Supply: Two 1.5V AA batteries (alkaline or Ni-MH ≥1900mAh)
• Dimensions: 95 × 66 × 24.5 mm
• Weight: 135 g (4.8 oz) excluding batteries; ~6.6 oz including batteries
• Device Warranty: 2 years
• Cuff Warranty: 1 year

System Requirements (Analysis Software)

• CPU: 1 GHz or higher
• Memory: 2 GB or more (x64)
• Operating System: Windows 10 or 11 (recommended)
• Display: 800 × 600 pixels or higher
• Disk Space: 24 GB available (x64)

Validation & Certifications

• ISO 81060-2:2013: Pass — Kario, K., et al. (2018). *Validation of the TM-2441 Ambulatory Blood Pressure Measurement Device According to the ISO 81060-2:2013 Standard*. *Blood Pressure Monitoring (Vol. 00)*.
• AAMI: Pass — Recommended by dabl Educational Trust.
• Hypertension Canada: Gold validation level, meeting highest international standards.
• Validated Device Listing (VDL): Certified by ValidateBP.org for independent clinical accuracy.

What's in the Box

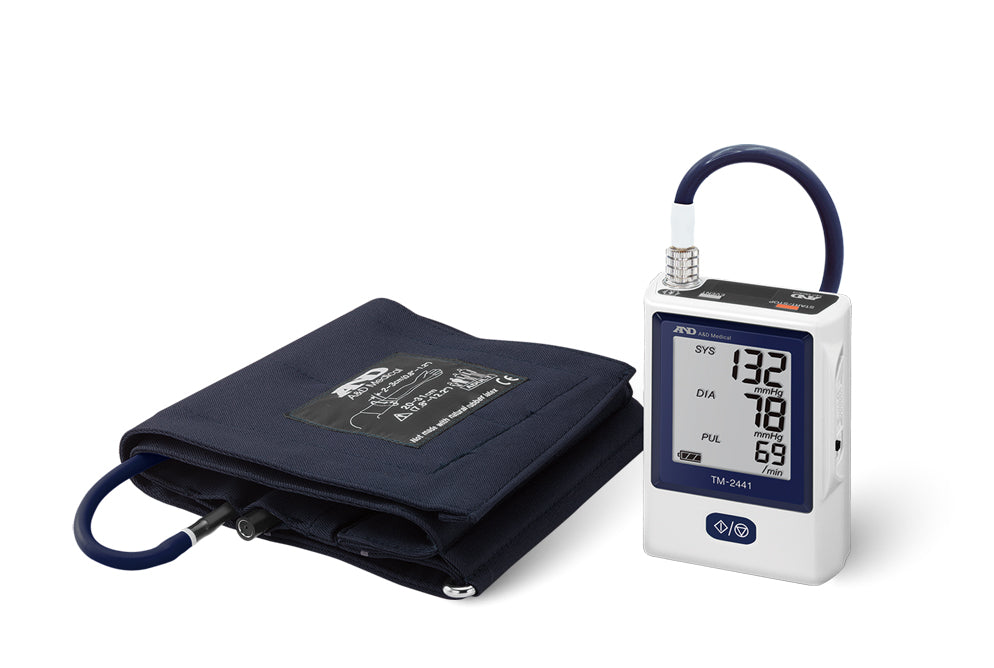

• A&D TM-2441 Premium Ambulatory Blood Pressure Monitor
• Medium Blood Pressure Cuff
• Two Medium Reusable Cuff Covers
• Large Blood Pressure Cuff
• Two Large Reusable Cuff Covers
• USB Cable
• Belt & Clip Holder

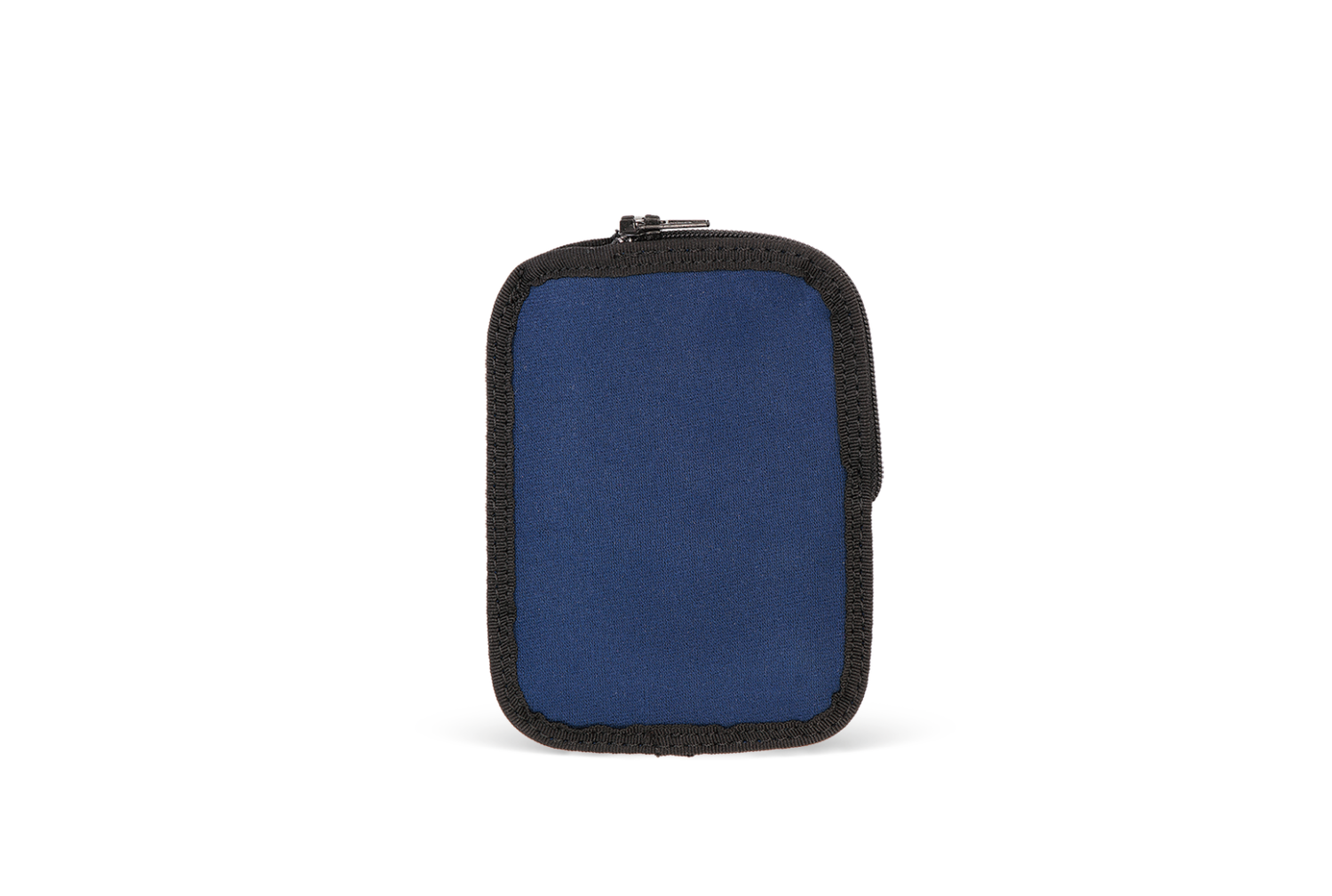

• Carrying Holder
• Activity Record Sheets (10-pack)
• Ambulatory Analysis Software (CD or digital license)
• Instruction Manual

Return on Investment (ROI)

Ambulatory BP monitoring adds measurable value and clinical efficiency. As ABPM procedures are often covered by Medicare and private insurance, the TM-2441 can pay for itself quickly while improving patient outcomes and diagnostic accuracy.

Important Information

• Intended Use: For professional clinical use by trained healthcare personnel. Not intended for unsupervised home use.
• Maintenance: Store in a dry, room-temperature environment. Do not immerse in water. Clean cuffs with mild detergent.
• Regulatory Compliance: Conforms to ISO 81060-2:2013 and AAMI standards. CE marked and FDA cleared (Class II medical device).
• Support: A&D Medical offers setup guidance, software training, and technical assistance for clinical installations.
• Final Sale — Non-Returnable: Due to medical regulatory standards, this professional device cannot be returned once opened or used.
• Specialty Item - Please prepare for longer lead times than shown. Specialty SKUs can take up to 1-3 weeks to ship.

Equip your practice with the A&D TM-2441 — a premium, dual-purpose ABPM and AOBP system delivering clinical-grade precision, patient comfort, and environmental insight in one compact design.
