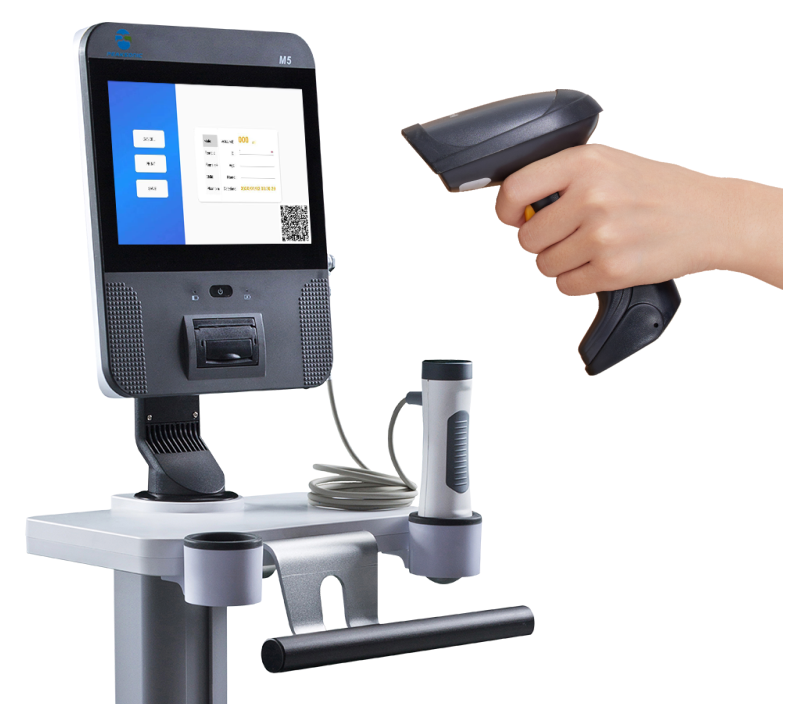

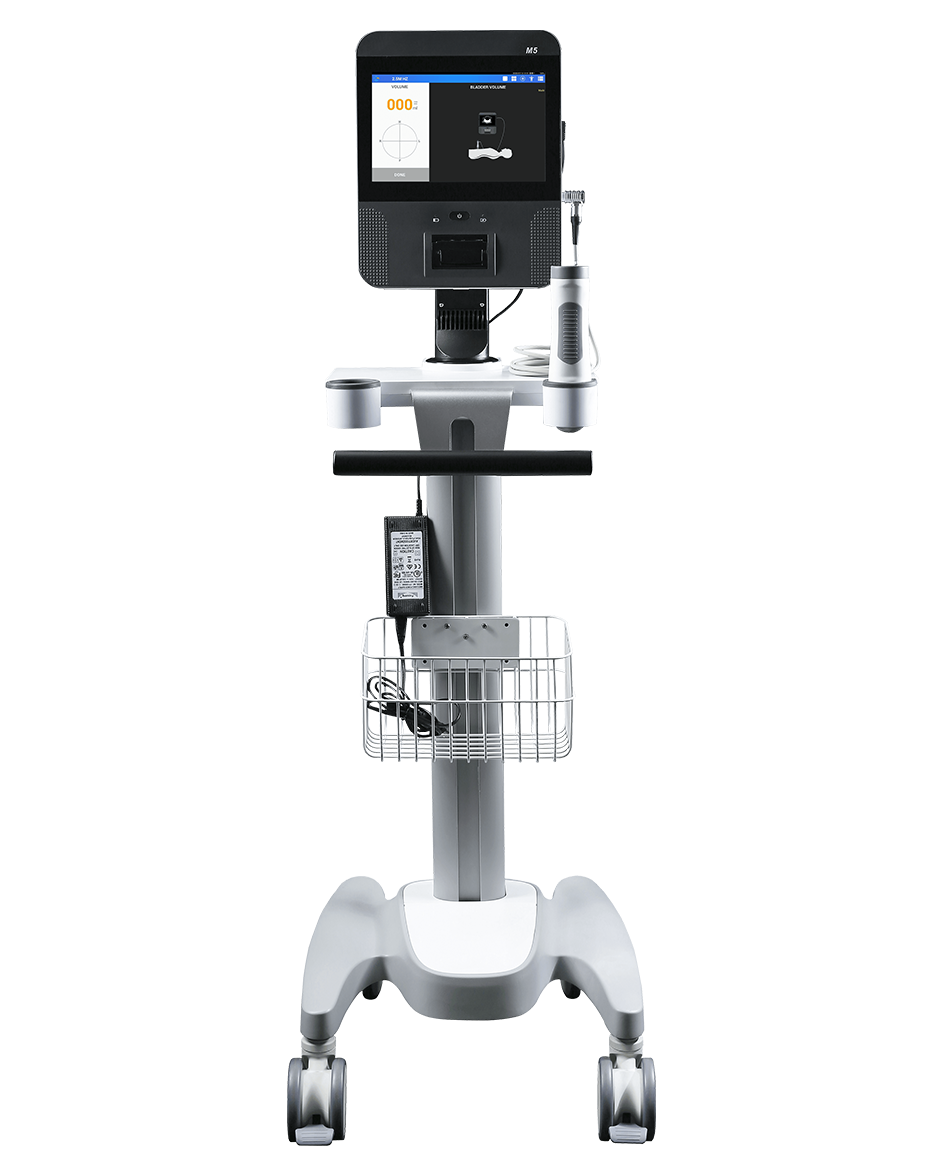

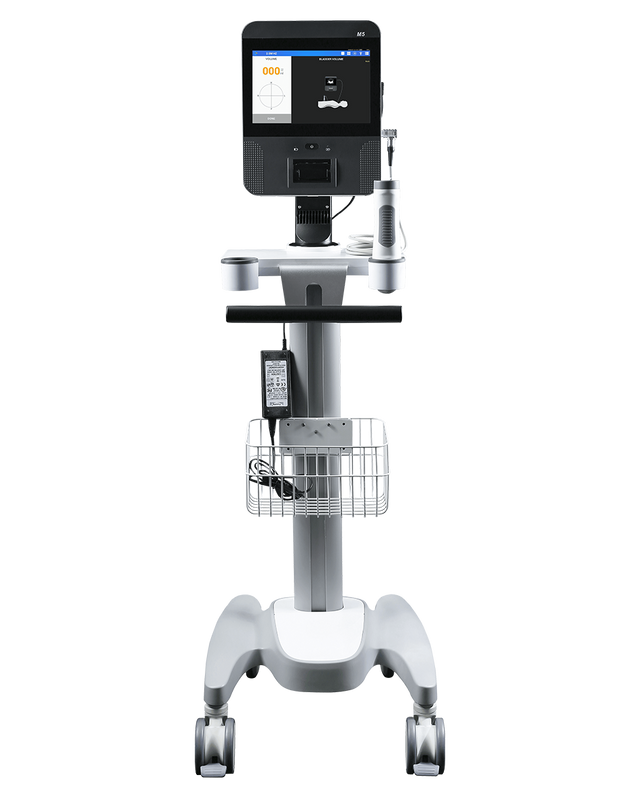

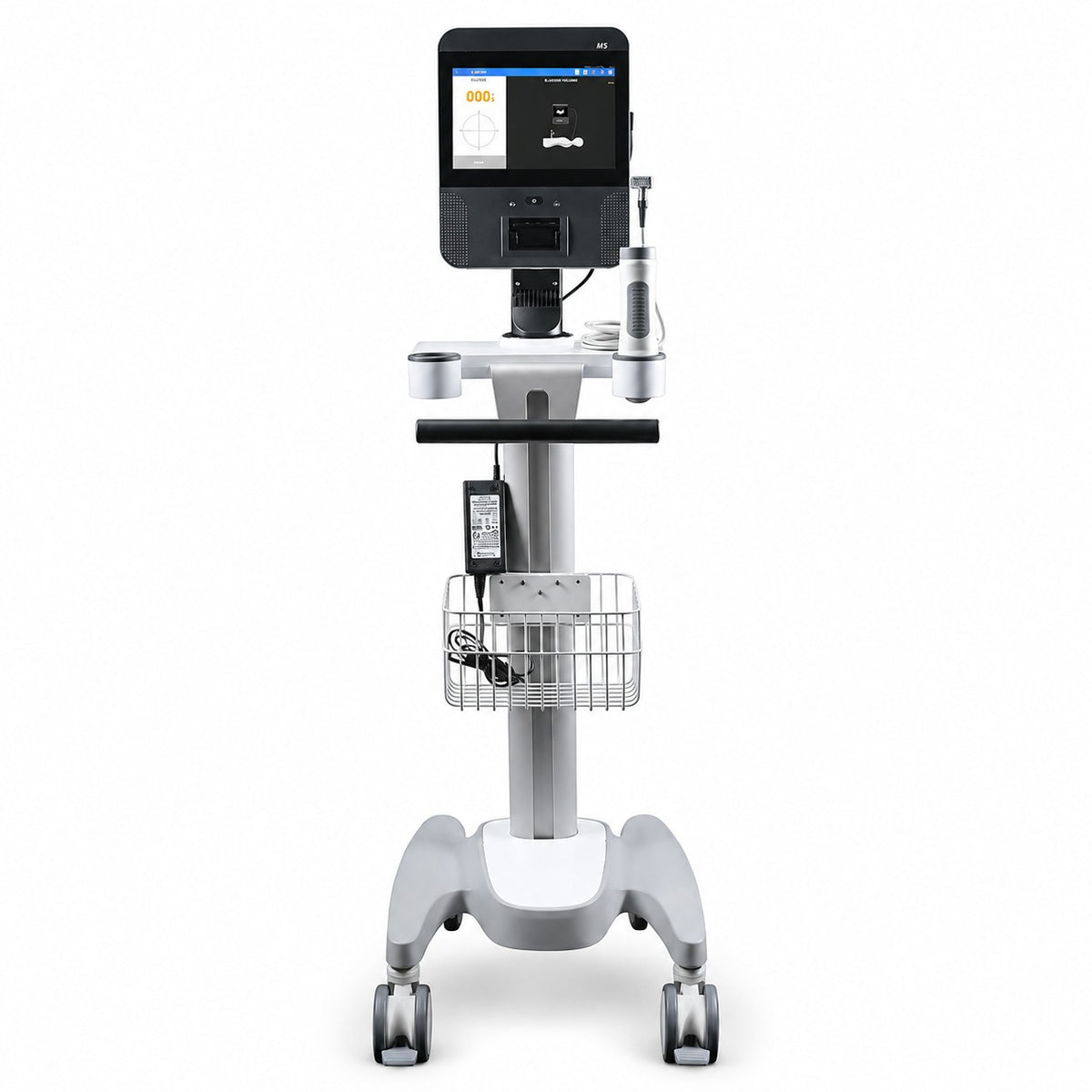

MDPro M5 Bladder Scanner – Touchscreen, Printer & Cart

The MDPro M5 is a high-precision, 3D bladder scanner designed for seamless point-of-care use in hospitals, urology clinics, rehab centers, and long-term care facilities. Featuring a capacitive touchscreen, built-in thermal printer, and rolling medical cart, the M5 enables fast, accurate assessments with minimal calibration.

This system measures bladder volume (0–999 mL) and bladder wall thickness with ±7% accuracy (±7 mL for volumes <100 mL), eliminating the need for annual calibration. Additional features include an automatic patient-type selector, pubic bone interference indicator, and real-time bladder positioning guidance via the probe’s mini display.

With WiFi, USB, and barcode‑scanner connectivity, results can be exported or printed immediately. The 3200 mAh battery delivers up to 2 hours of continuous scanning, and internally stores patient data for streamlined review and record-keeping.

Specifications:
Display: 10.1″ capacitive touchscreen console
Scanning Type: 3D mechanical sector probe at 2.5 MHz ±15%
Volume Range: 0–999 mL (resolution 1 mL)
Accuracy: ±7% or ±7 mL for volumes <100 mL
Bladder Wall Thickness: 0–15 mm (±10% ±1 mm)
Scan Time: Less than 5 seconds per measurement
Battery: Rechargeable 3200 mAh lithium (≈2 hrs continuous use)
Connectivity: Built-in thermal printer, USB, WiFi, barcode scanner support
Weight: 20 lb (≈ 9.1 kg) including console, probe, and medical cart

What’s in the box:
Built-in thermal printer (installed)
M5 bladder scanner probe with mini-display
Thermal printer paper roll
Charging cord for unit and probe
Battery pack (3200 mAh, 11.1 V)
Charging base
Medical rolling cart with probe holders and storage basket
50 mL bottle of ultrasound gel

Warranty: 2-year manufacturer warranty (see manufacturer docs)
Note: Designed for professional use; licensing or medical certification may be required. Probe gel and paper loads are consumables included but require periodic replacement.
