OMRON Max Power Relief TENS Unit [PM500]

Regular price $8732
30-day returns on most unopened items Ships with USPS and UPS Secure checkout Support by phone and email
HSA/FSA Eligible
Why you'll love it
✓
9 preset modes. Arm, Lower Back, Leg, Foot, Shoulder, Joint, plus Tap, Knead and Rub
✓
15 intensity levels. from 1 low to 15 high
✓
Battery powered. runs on 2 AAA batteries, about 4 months at 15 minutes a day
✓
Reusable pads. Long Life Pads are rated for up to 150 uses
✓
Auto shut-off. stops after 15 minutes

Specifications

PowerDC 3 V, 2 AAA batteries (included)
Modes9 preset (6 body-area, 3 massage-style)
Intensity levels15
Channels1
Auto shut-off15 minutes
SizeApprox. 2 x 4.4 x 1 in
WeightApprox. 3.5 oz with batteries
Pad lifeUp to 150 uses
Omron  |  SKU: 1249

Shipping & Returns

Returns are accepted within 30 days for unopened, unused items in their original packaging. Customers are responsible for return shipping.

Please note that some items, including select medical and diagnostic products, are final sale and not eligible for return.

View our full policy for complete details.


Description

OMRON Max Power Relief PM500 TENS unit for muscle and joint pain

The OMRON Max Power Relief PM500 is a battery-powered TENS unit that delivers electrical nerve stimulation through pads on the skin. It has 9 preset modes: Arm, Lower Back, Leg, Foot, Shoulder and Joint, plus Tap, Knead and Rub, with 15 intensity levels you set from 1 low to 15 high.

It is intended for adults with sore or aching muscles in the lower back, arms, legs, shoulder or foot from exercise or normal household and work activities. A large screen shows the mode, intensity and minutes left, and the unit shuts off by itself after 15 minutes. The kit includes reusable Long Life Pads rated for up to 150 uses.

The PM500 runs on 2 AAA batteries, which are included, and comes with a belt clip and soft pouch. Do not use it with a pacemaker, implanted defibrillator or other implanted device, during pregnancy, or on children. Keep pads off the head, neck, chest and broken skin, and follow the manual.

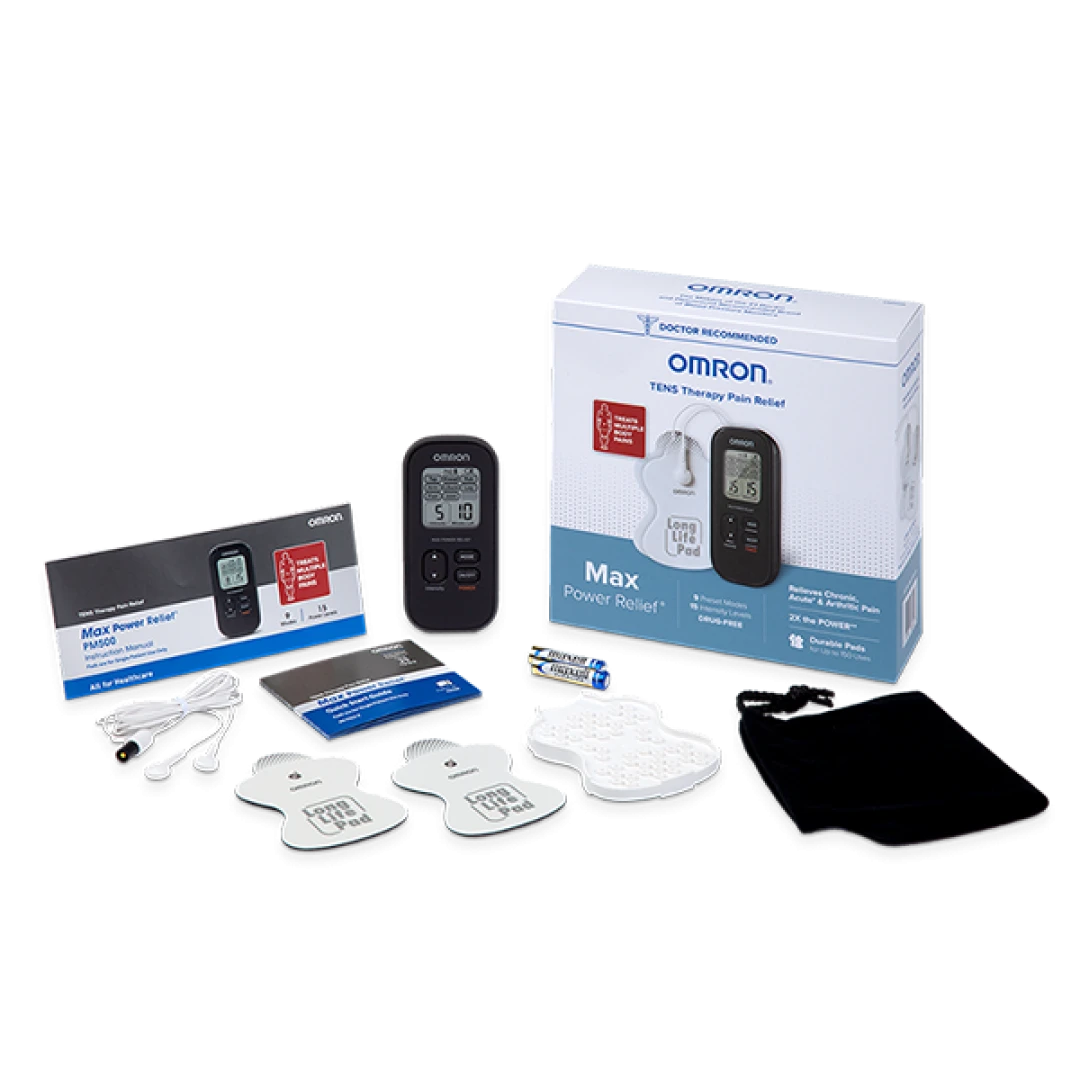

What's in the box

1xOMRON PM500 TENS unit
2xStandard Long Life Pads
1xPad holder
1xSet of electrode cords
2xAAA batteries
1xBelt clip
1xSoft pouch
1xInstruction manual and quick start/pad placement guide
Single-channel unit. Use only OMRON pads and cords with it.

Frequently asked questions

Is the PM500 rechargeable?

No. It is powered by 2 AAA batteries (included). New alkaline batteries last about 4 months at 15 minutes a day in Lower Back mode at maximum intensity, per the manual.

What is it intended for?

Relief of pain from sore or aching muscles of the lower back, arms, legs, shoulder or foot due to strain from exercise or normal household and work activities. It is for adults.

How long can I use it?

The unit shuts off automatically after 15 minutes. OMRON recommends a total of two 15-minute sessions in one sitting, up to three times a day.

Who should not use it?

Do not use it if you have a cardiac pacemaker, implanted defibrillator or other implanted metallic or electronic device. Do not use it if you are pregnant, and do not use it on children or infants. Consult your physician before use, especially with heart disease, epilepsy or a recent surgical procedure.

Where must I not put the pads?

Not on the head, mouth or face, the neck or throat, near the heart or genital area, across the chest, on both calves or both feet at the same time, or on open wounds, rashes, or swollen or infected skin.

When should I not use it?

Not in the bath or shower, while sleeping, or while driving or operating machinery. If your pain does not improve or lasts more than five days, stop and consult your physician.

How do I care for the pads?

Wash the adhesive surface gently with your fingertips under slow running water when it gets dirty. Pads are reusable up to 150 uses and replacement pads are sold by OMRON.
